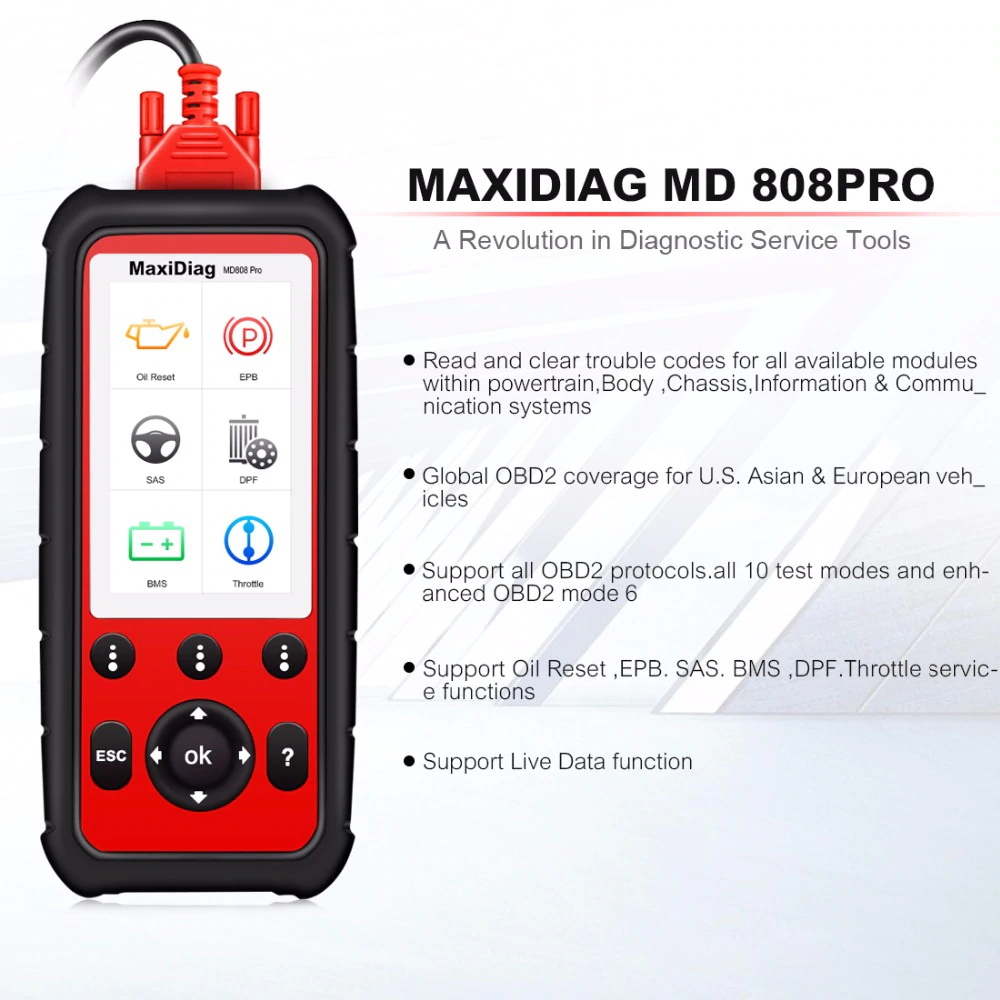

Autel MaxiDiag MD808 Pro All System OBDII Scanner Update Online
What the Advantages of MD808 Pro:
1. Lifetime Free Update Online on Autel Official Website
2. For MD808 PRO, Live data graphing for all available modules.
3. MD808 PRO is upgrade version of MD802 , covers more cars and more systems.
4. Vehicle Coverage: Global OBDII coverage for U.S. domestic, Asian and European makes and models
5. Functions Supported: support Steering Angel Learning , DPF functions , and Battery Registration and reset. MD802 didn't have these functions

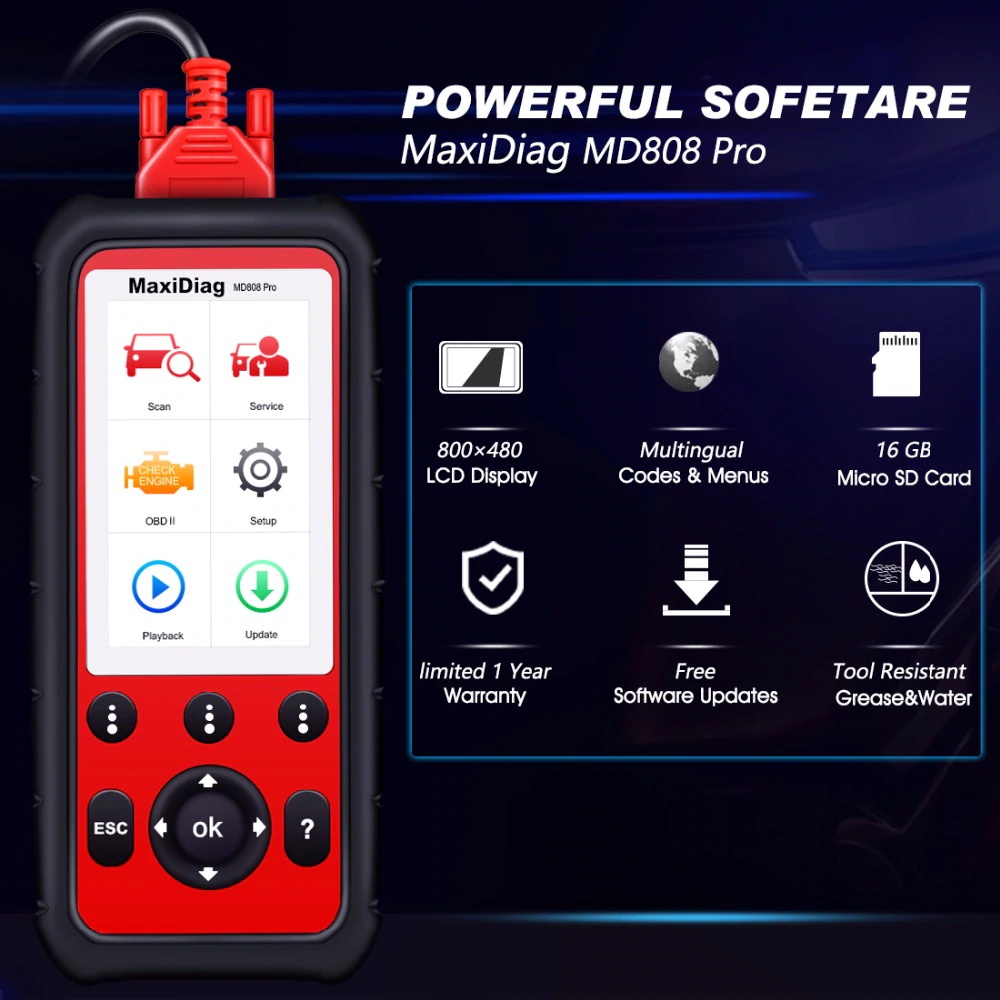

6. Powerful Hardware: MD808 PRO Included with 16G Micro SD Card, full color 800*480 display to take your diagnostic experience to a whole new level;
7. Brand New Design: Autel MD808 pro, a revelation in diagnostic and service tool is launched with brand–new exterior in terms of design, structure and buttons;

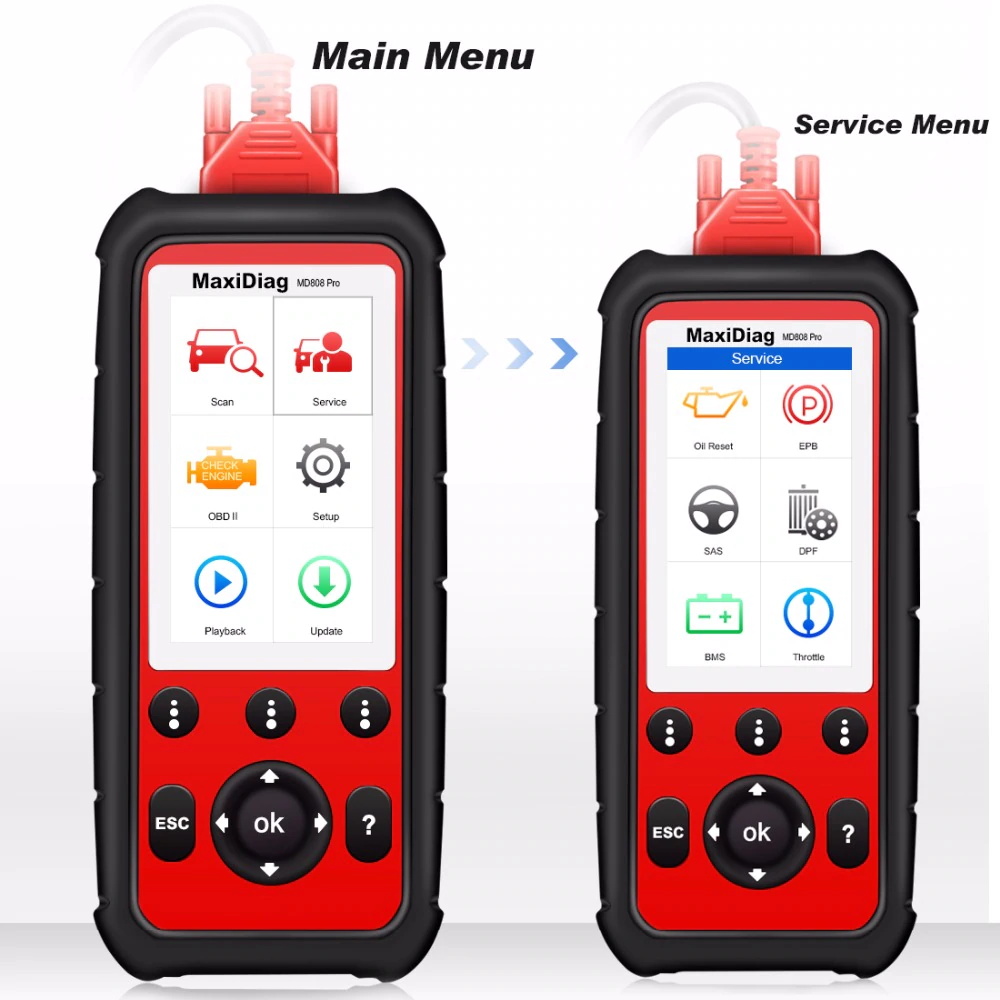

8. Autel MD808 pro is not just a diagnostic tool, but a professional service tool to service individual specialized systems, including Oil Reset, EPB, SAS, BMS and DPF, offers quick and easy solution to everyday task in the workshop; Based on the ARM Thumb Processor (400 MHz), it needs only 6s booting time to allow you to build a more fluid user experience.
9. Efficient Diagnosis: MD808 PRO Offer more advanced features and functions to troubleshoot basic four systems (Engine, Transmission, SRS and ABS) for major vehicles on the road today.
Description:

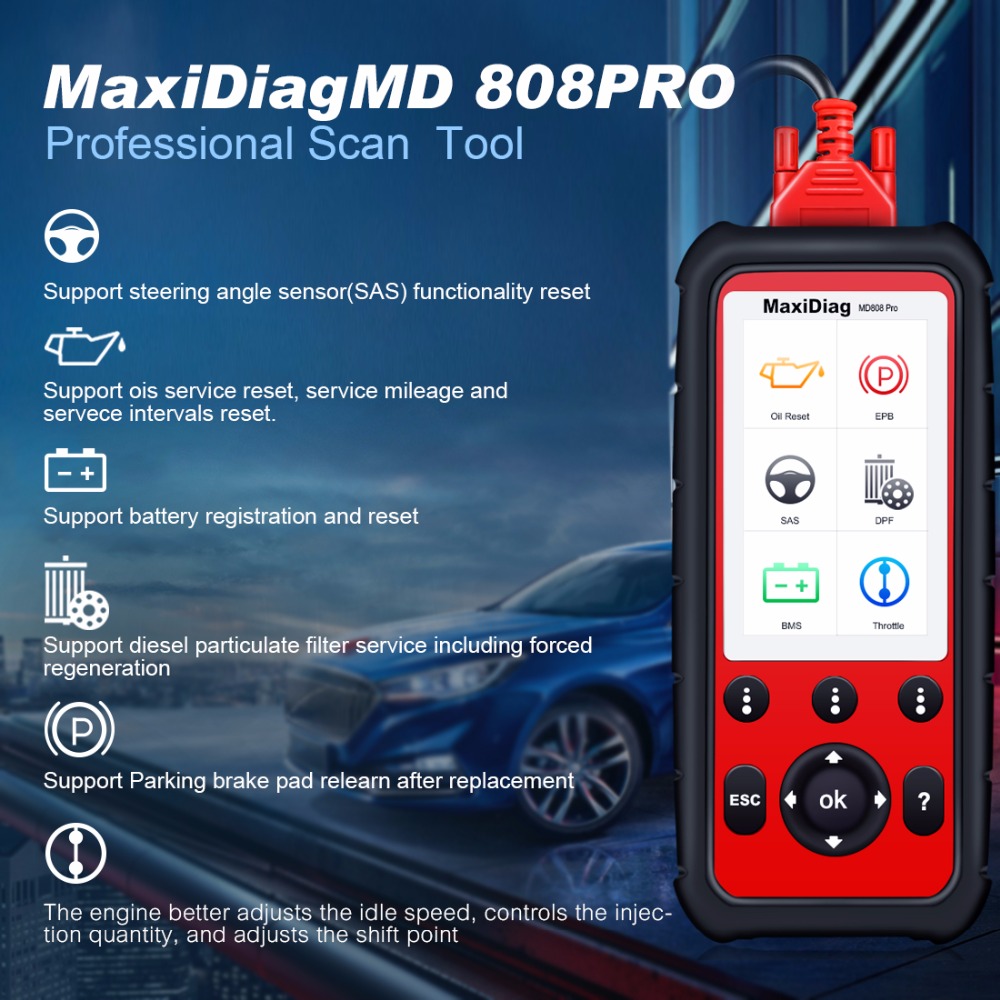

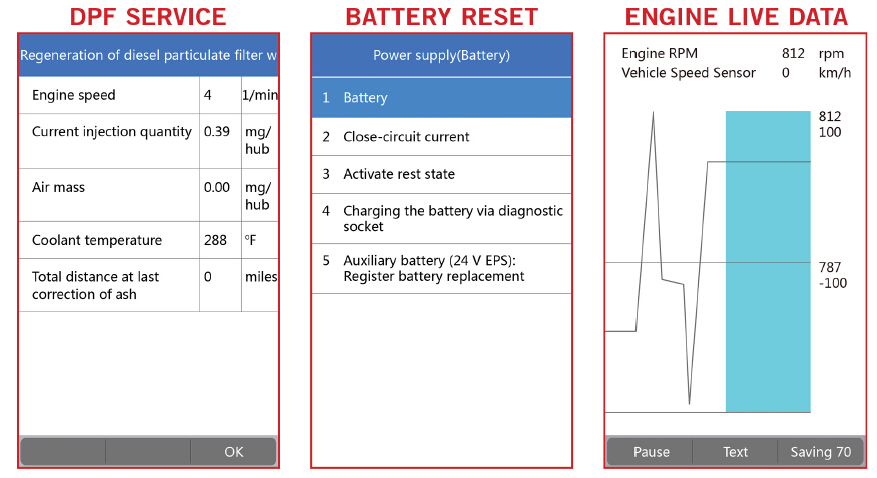

The MaxiDiag MD808 Pro is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD808 Pro can access ALL available modules for the best diagnosis operations. With all that enclosed in a 4-inch hand-held device, there is no better multifunctional scan tool on the market.
The all new Autel MD808 pro offers technicians more advanced features and functions to diagnose all systems for major vehicles on the road today. With all the amazing functions, the small andexquisite tool is capable of delivering unmatched efficiency in diagnoses and services, making the ideal service tool priced for everyone to afford.

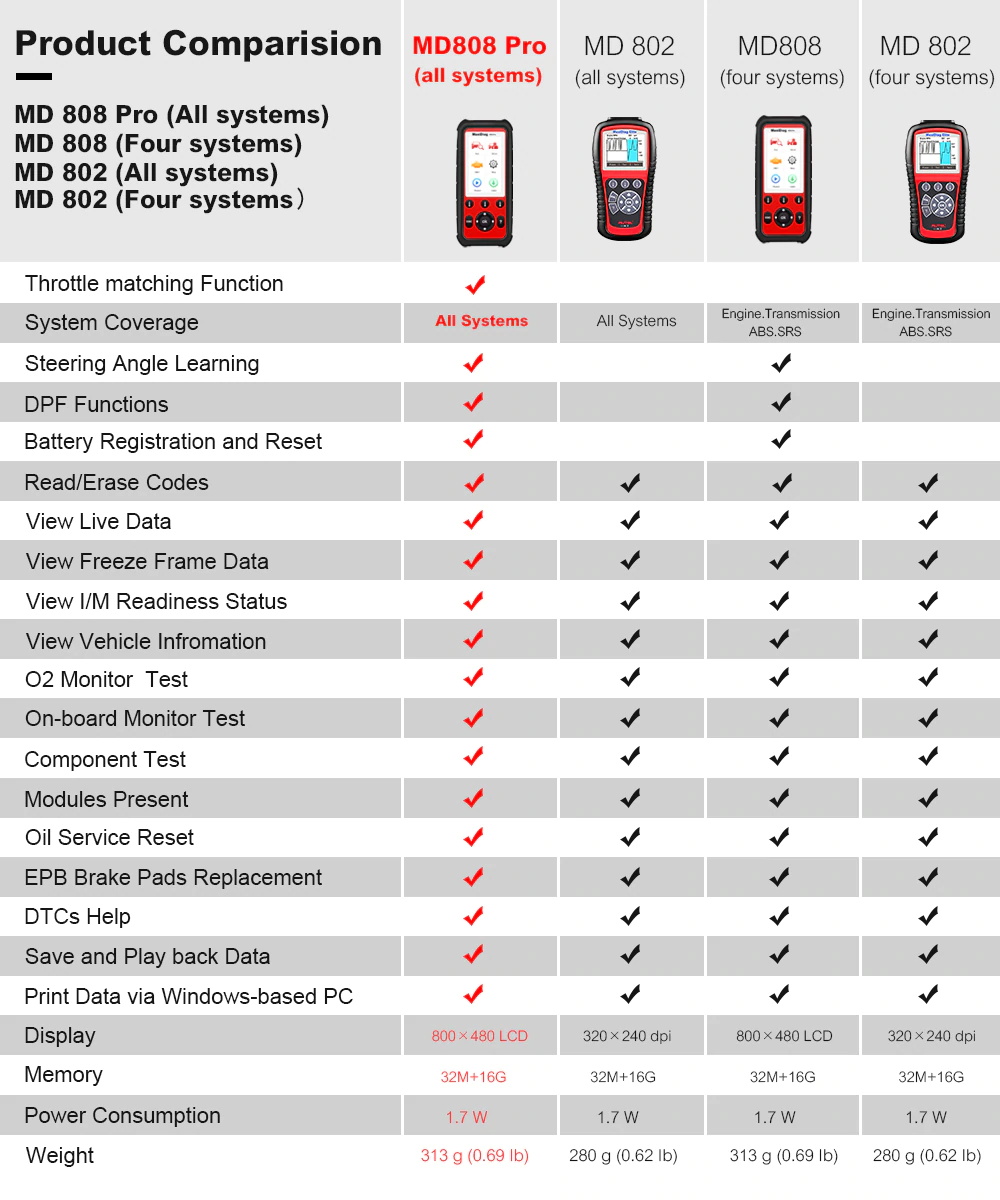

What the advantages of MD808 PRO compare with MD808 AND MD802?
1.MD808 PRO supports all system of car, md808 only support 4 system, and MD808 PRO is upgrade version of MD802 , coverage more car and more systems.
2.MD808 PRO supports Steering Angel Learning , DPF functions , and Battery Registration and reset.
The MD802 doesn't have these functions.
Difference Between MD802 and MD808 Pro

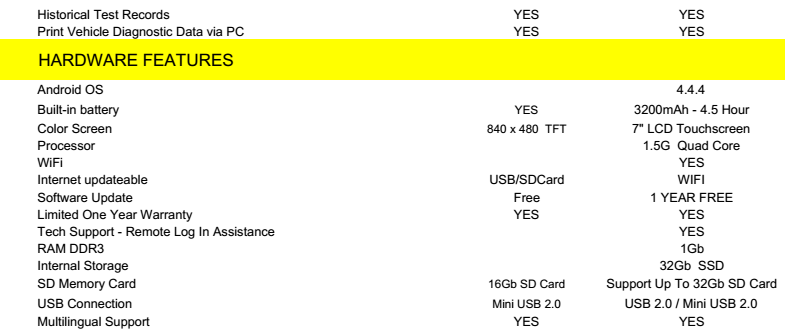

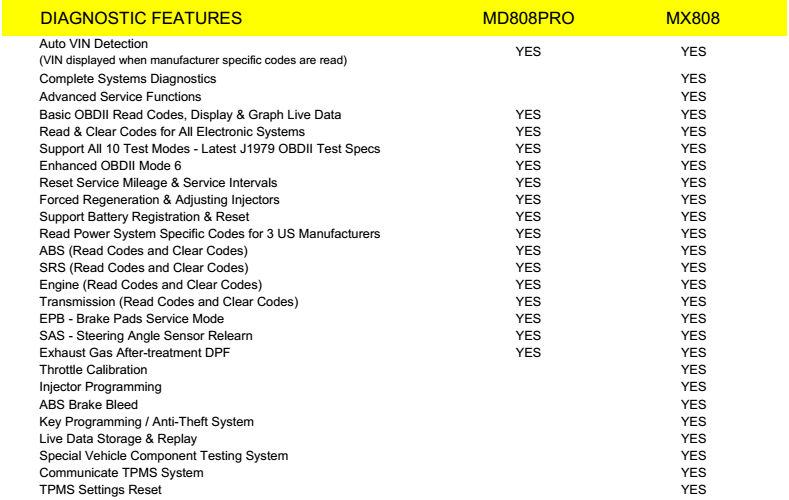

What is the difference of Autel MaxiDiag MD808 Pro VS Autel MX808:
Functions:
1. Support Read/Clear Codes and Live Data functions for ALL systems
2. Read and clear trouble codes, control and test BMS/Oil Reset/ SRS/EPB/DPF systems
3. Support oil service reset.
4. Support battery registration and reset
5. Diesel particulate service including forced regeneration
6. Reset steering angle sensor (SAS) functionality.
7. Relearn parking brake pad after replacement
8. Reset service mileage and service intervals
9. Turn off ECU brake warning light
10. Perform O2 monitor, on-board monitor, I/M readiness and component testing.
11. Print diagnostic reports via PC connection
12. Global OBD II coverage for U.S. domestic, Asian and European makes and models
13. All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 support .
Vehicle Coverage:
For Abarth, Alfa Romeo, Audi, VW, For Seat, Skoda, Volvo, Saab, Bentley, Mercedes Benz, BMW, Bugatti, Citroen, Renault Peugeot, Dacia, Fiat, Ford, Jaguar, Lancia, Landrover, aybach, Mini, Opel, Porsche, Smart, Vauxhall,Acura, Daewoo, Honda, Hyundai, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan Group, Scion, Subaru, Suzuki,For Toyota,Chrysler, Ford, G-M

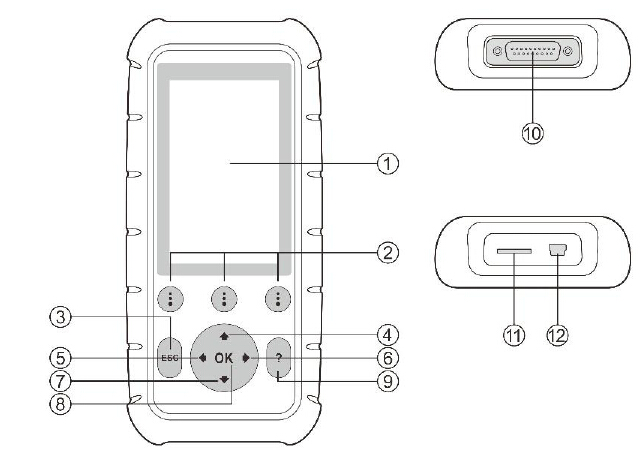

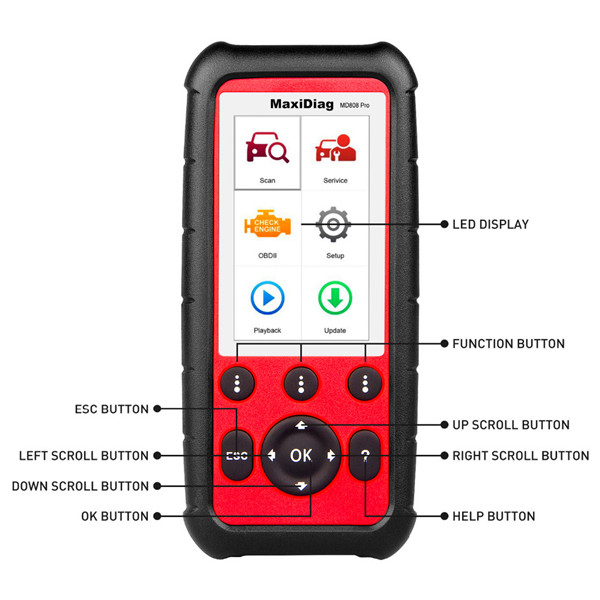

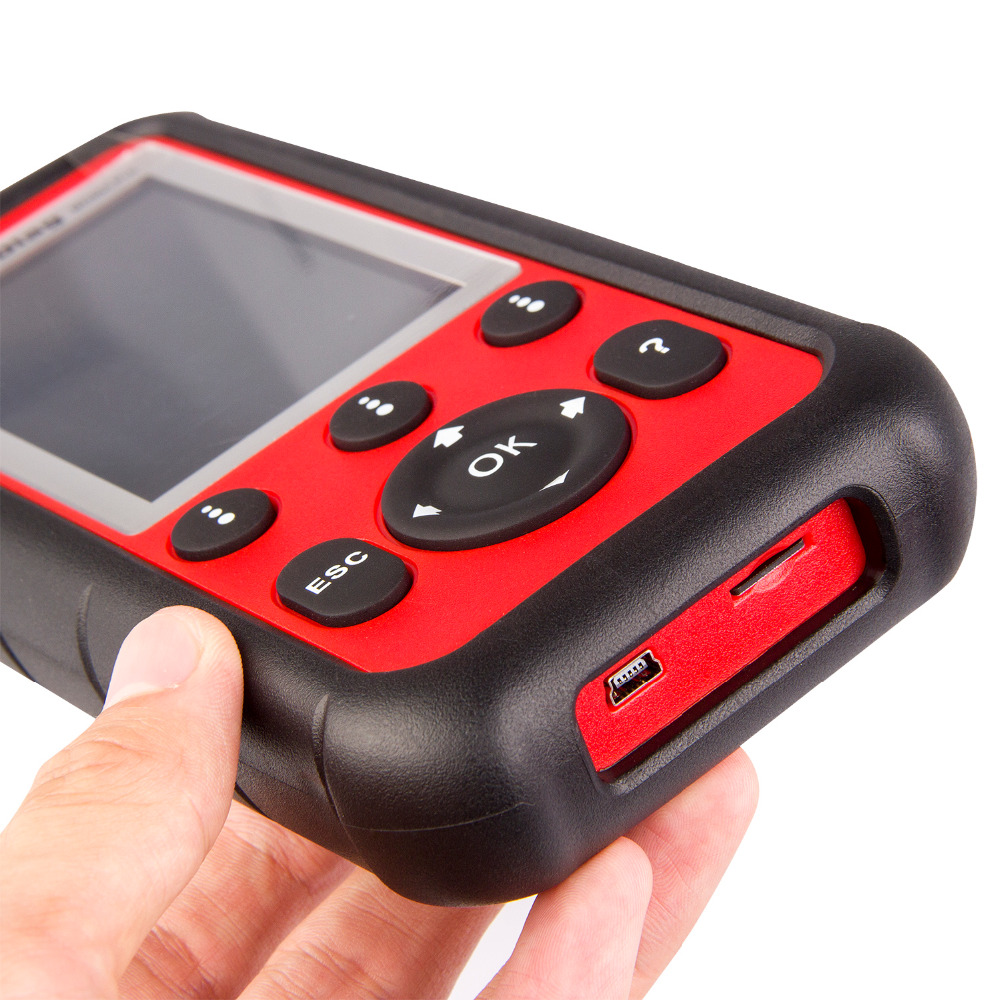

Autel MaxiDiag MD808 Pro Views:
1. LCD Display--indicates test results.TFT color display(800*480 dpi)
2. Function Button--corresponds with "buttons" on screen for executing commands.
3. ESC Button--cancels a selection (or an action) from a menu or returns to the previous screen.
4. Up Scroll Button--moves up through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves up through the current screen to the previous screens for additional data.When looking up DTC, it is used to change value of selected character.
5. Left Scroll Button--when look up DTC definitions, moves to previous character and views additional information on previous screens if DTC definition covers more than one screen; views previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.
6. Right Scroll Button--when look up DTC definitions, moves to next character and view additional information on next screens if DTC
definition covers more than one screen; views next screen or next frames of recorded data.. It is also used to view next trouble code when viewing DTCs.
7. Down Scroll Button--moves down through menu and submenu items in menu mode. When more than one screen of data is retrieved,moves down through the current screen to next screens for additional data. When looking up DTC, it is used to change value of selected character.
8. OK Button--confirms a selection (or an action) from a menu.
9. Help Button--provides help information for the function conducted on the screen.

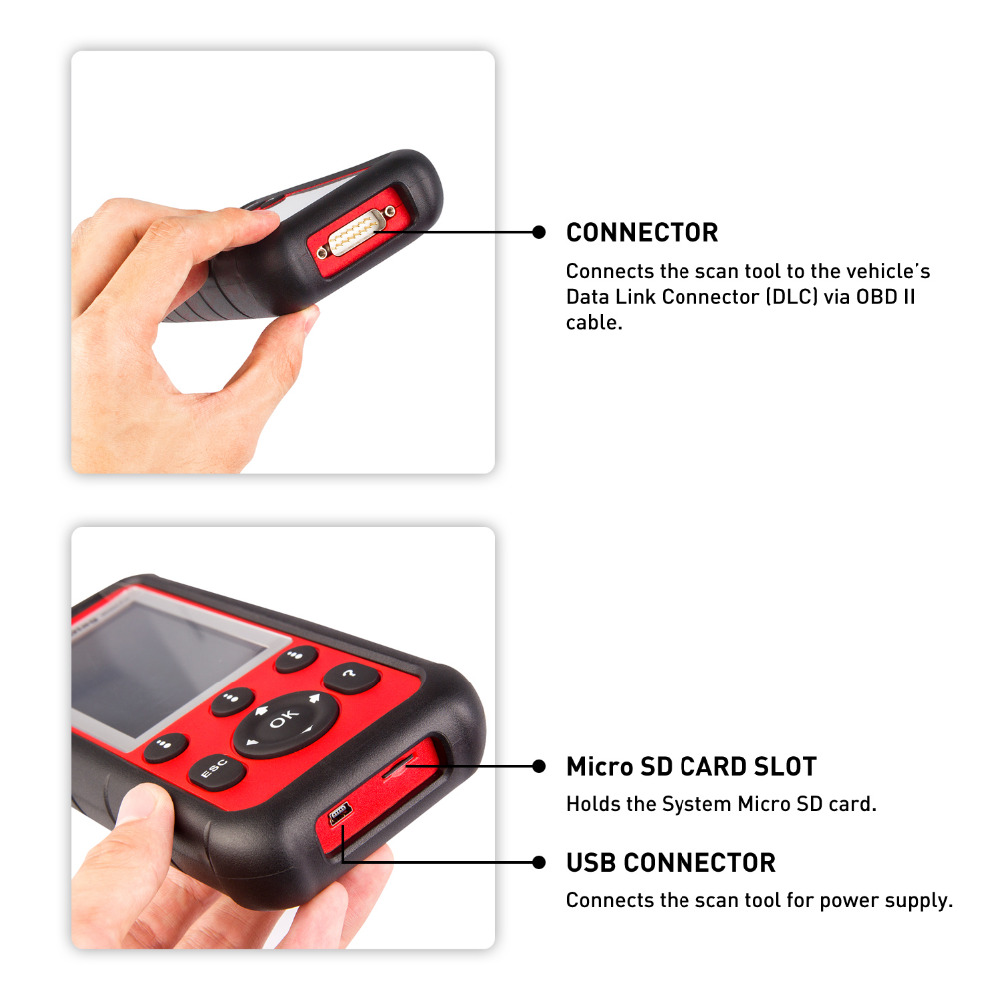

10. Connector--connects the scan tool to the vehicle's Data Link Connector (DLC) via OBD II cable.
11.Micro SD Card Slot--holds the System Micro SD card.
MaxiDiag MD808 Pro Specifications
Processor: ARM Thumb Processor (400 MHz)
Memory: 32MB, 166 MHz

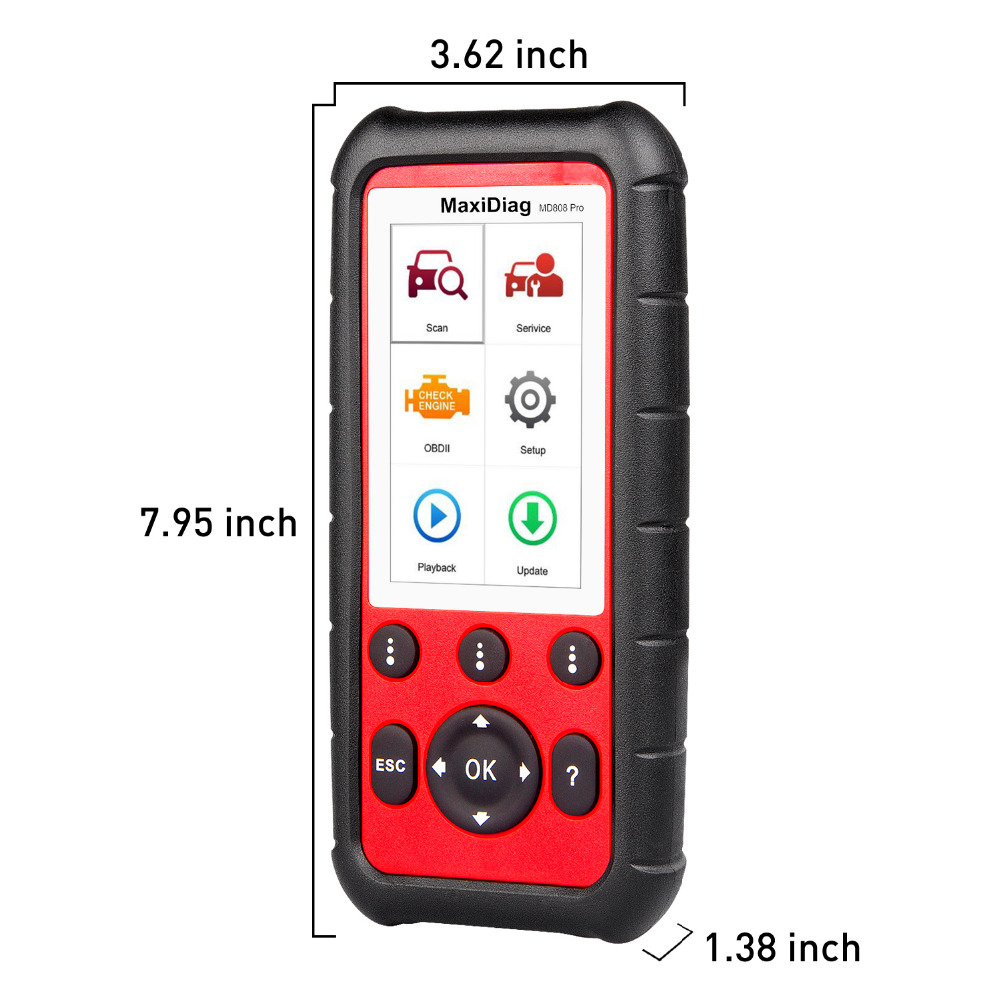

Display: 4.0 inch LCD with 800x480 resolution
Connectivity: Mini USB: 2.0 Micro SD Card (16GB)
Power Consumption:1.7 W
Operating Temperature: -10°C to 60°C (14°F to 140°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 5% - 95% non-condensing
Housing: Strong plastic housing with protective rubber boot
Autel MD808 Pro FAQs:
Q1: Autel MD808 have any advantage over the MD802
A1: MD808 is much more advanced than MD802.MD808 supports to read and clear trouble codes, control and test BMS / SAS / DPF systems,and reset steering angle sensor (SAS) functionality. These functions MD802 is unavailable to do.Hope it can meet your demands.
Q2: Will this be able yo bring up Transfer Case codes
A2: Yes,this md808 can read/erase codes on Engine, Transmission, SRS and ABS system as well as lot of special functions.
Q3: Will this unit interface with all of the modules and eletronic controls on a Toyota Prius And specifically to meter in coolant and bleed brakes
A3: This md 808 can work on your Toyota Prius on four systems , if wanna get a all system supported product, you can have a look for the MD802 full system or md808 pro.And for metering in coolant and bleed brakes,you may have a look for Autel MK808.
Q4: Autel launched another new product md808. what's the differences between md808 pro and md808
A4: MD808 pro is an more advanced professional scan tool than MD808. Though MD808 and MD808 pro are armed the same hardware, MD808 pro has more powerful built-in software system than MD808 pro. MD808 can only access to Engine, Transmission, ABS, and Airbag (SRS) systems while MD808 pro support Read/Clear Codes and Live Data functions for ALL systems.
Q5: Hi this able to bleed abs system on mb gl550
A5: It will support reading and clearing all codes in all modules. But it would not support the brake bleeding functions. I think you need MX808 to bleed abs system.
Q6: Shops that would use Autel MaxiDiag MD808 Pro
A6: General repair shops (Perfect for servicewriters), body shops, used car dealerships, auto repair shop, brake facilities, DPF Auto Repair shop, and transmission repair shops
Autel MD808 Pro Reviews:
Review 1:
I did try it out and it did work very well. I work as a gm technician and i use the ms906ts model from autel and they both seem to read the same data. I would recommend any autel product to anyone. They have great products and great technical support. I did the current update on this unit which was simple. The newest update gave you the feature to do the updates through usb. I had to remove the mico sd card to do the updates the first time. You will need a micro sd to sd card adapter if you get a unit with the older software installed.
Review 2:
Autel MD808 Pro was recommended by tire shop because it's a well made quality product capable of high speed use for sports cars. Product installed and programmed easily for use in my '06 corvette.
Review 3:
I purchased this to help diagnose an ABS issue and to clear the trouble code(s) when the issue was fixed. It handled these tasks without issue. The ability to see sensors operate in real time and plot them on a graph is invaluable.
Review 4:
This is a new launched product of Autel. My friend bought a MD802 which works very good. This one is an updated version of MD802. It has a bigger screen and memory, and seems the scanning speed is a little bit faster scanning all systems. A very good diagnostic tool.
Review 5:
It clears code fast and works well. It's an all system diagnostic tool and easy to use. The 16G memory card which enables update is a plus compared to MD802. Though it's not a bi-directional tool, we won't get that at this price.
Package List:
1 x User Manual
1 x Quick Reference Guide
1 x Main cable
1 x Micro SD card
1 x Carry case
1 x USB Cable
